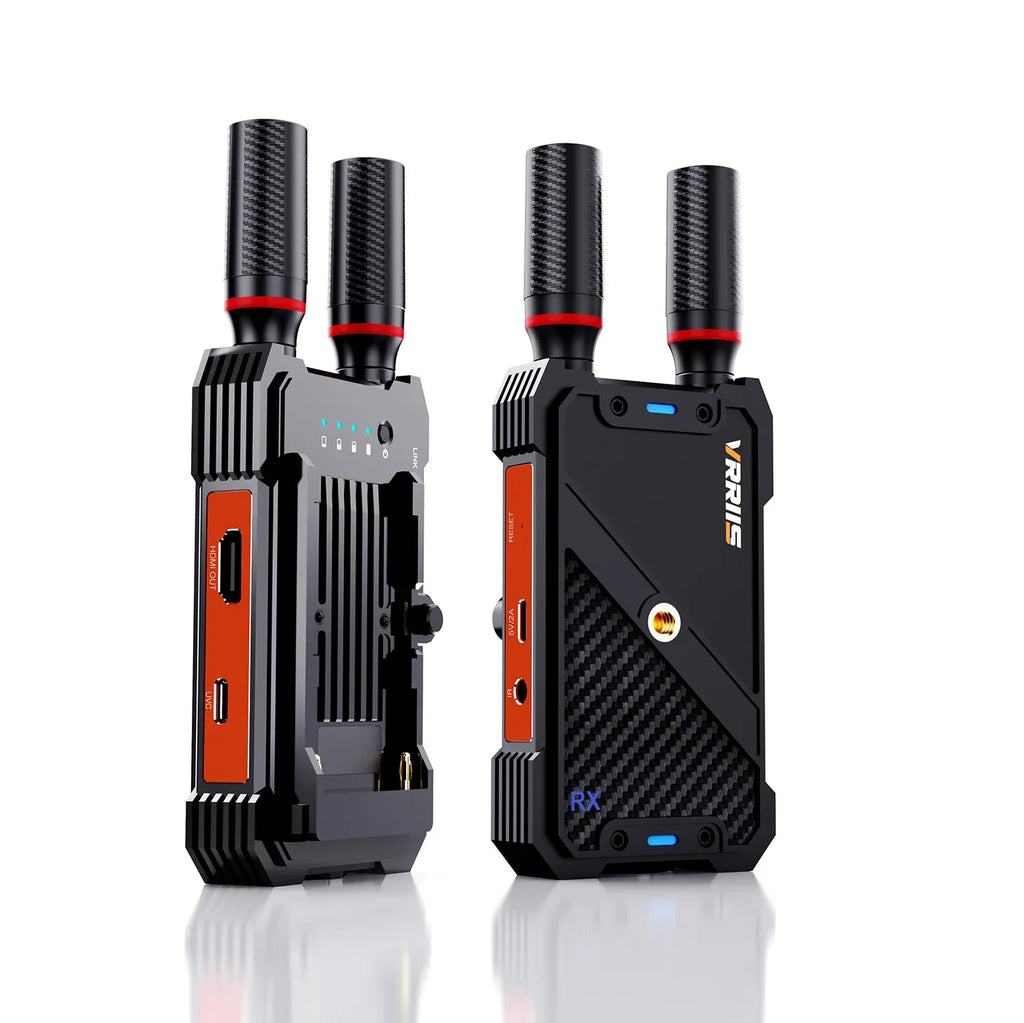

WL082U Wireless HDMI Transmitter & Receiver

Experience ultra-reliable wireless video transmission with the WL082U. Featuring 1080P@60Hz output, H.265 encoding, and a range of up to 400M/1312FT, it's built for creators, broadcasters, and AV professionals who demand performance without cables.

Key Features

• Ultra HD 1080P@60Hz – Crystal-clear video with H.265 encoding, delivering superior quality over standard 1080P devices
• Long-Distance Transmission – Stable signal up to 1312FT/400M with ultra-low latency (0.05S) for real-time performance
• Versatile Power Options – Supports NP-F 970/750/550 battery, power bank, or USB-C DC for flexible on-the-go use
• Full IR Remote Control – Easily adjust settings from a distance
• UVC-Compatible Recording – Direct 1080P@60Hz output for seamless video capture, editing, and storage
• Compact & Energy-Efficient – Sleek, low-power design for extended operation
• 1TX to 5RX Multi-Connection – Broadcast from 1 transmitter to up to 5 receivers simultaneously, perfect for multi-screen setups

Transmission Range with Multi-Receiver

Tested in open field, no obstacles or interference. Range may vary in different environments.

• 1TX – 1RX: ~400M / 1312FT
• 1TX – 2RX: ~200M / 656FT
• 1TX – 3RX: ~150M / 492FT
• 1TX – 4RX: ~120M / 393FT
• 1TX – 5RX: ~80M / 262FT

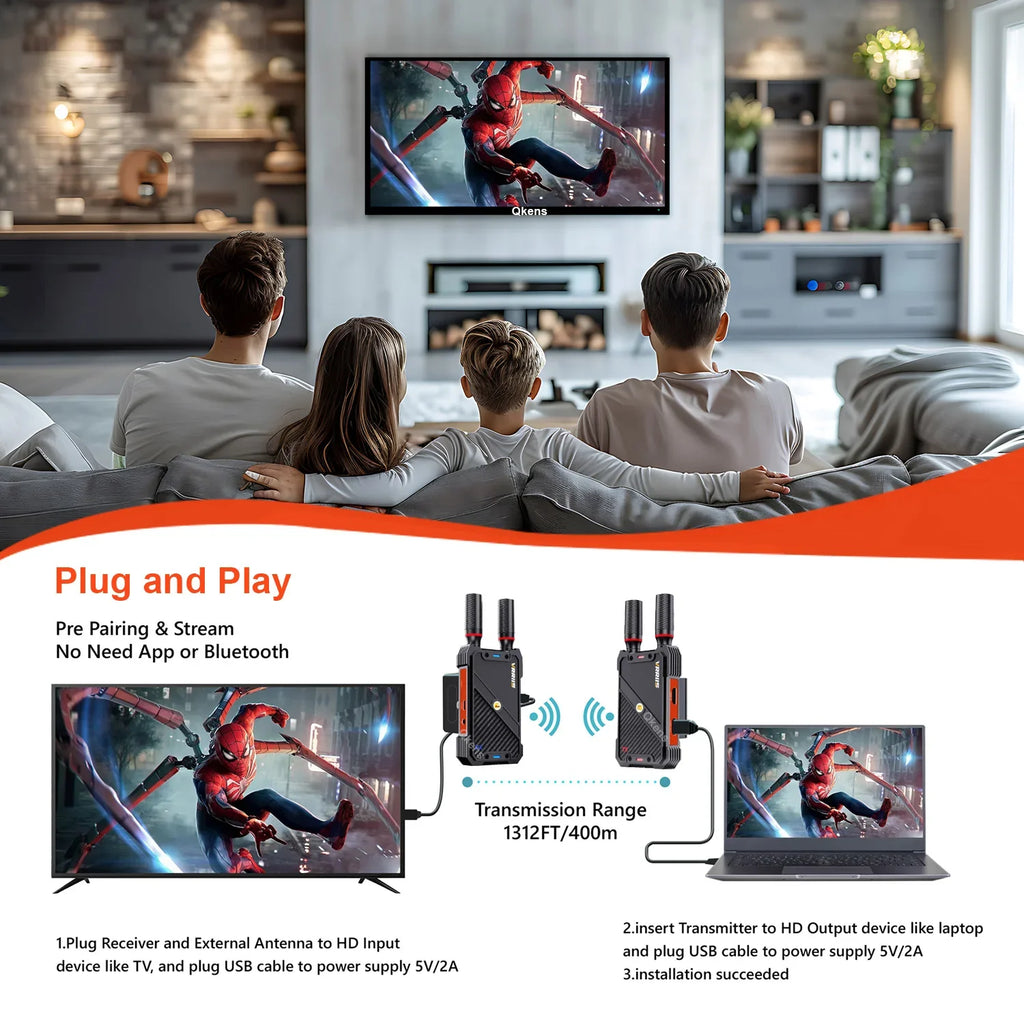

Pairing Instructions

1. Power on both TX and RX.
2. Observe that the green link light turns on.
3. Connect the HDMI IN port on TX and HDMI OUT port on RX with an HDMI cable.
4. After successful pairing, the green light on both TX and RX will flash. If it does not flash, pairing has failed.

Note: After pairing, disconnect the power supply. Reconnect when ready to use.

Package Contents (1TX + 1RX Kit)

• 400M Wireless Transmitter × 1
• 400M Wireless Receiver × 1
• Antenna × 4
• 5V2A Power Adapter × 2
• USB Power Cable × 2
• IR Cable × 2
• User Manual × 1

Note: RX cannot work alone — must be used with TX as a set. Battery not included.
